About Us
Shanghai Ye Kun Construction Machinery Co., Ltd. is one specialized
is engaged in the vibration sinking pile drawing machine equipment
production, sale and service of technology-oriented enterprises,
products mainly emerging a high-speed hydraulic pile drawing
machine and peripheral accessories, equipment widely used in all
kinds of foundation engineering construction.
After a short period of development, the company won the
recognition of customers, and the annual sales growth doubled.
Marketing the country with the VIBRA brand and export it. The
company′s production of mini hydraulic pile driver, vibration
hammer and other products quality has reached the advanced level of
the industry.
The company has a young and enterprising team cooperation, in order
to respect the customer value as self value, to become the most
reliable, the most comprehensive, the most professional vibration
pile machine equipment and service suppliers and make unremitting
efforts.
Product Details
This series of machines are popular with customers. The structure
of the body is look like with that of the standard Taiwan hammer.
The spare parts are replaceable. The box bearing is broken and easy
to be kept up. The box structure has higher necessities for
material strength, welding process and machining accuracy. We have
extreme control in all pieces of manufacturing to ensure stable
quality. We have viably manufactured the greatest model pcf-500,
which matches with Cat 365.
| Item Model | PCF-300 | PCF-330 | PCF-350 | PCF-450 | PCF-500 |
| Vibration Frequency | rpm | 3500 | 3300 | 3500 | 3300 | 3200 |
| Operation Pressure | Mpa | 32 | 32 | 32 | 32 | 32 |
| Centrifugal Force | kn | 385 | 420 | 470 | 535 | 585 |
| Max. Pile Length | m | 12 | 12 | 15 | 18 | 21 |
| Weight of Arm | kg | 750 | 750 | 750 | 820 | 820 |
| Weight of Hammer | kg | 2750 | 2850 | 2950 | 3150 | 3350 |
| Excavator | T | 27~30 | 33~38 | 40~45 | 47~55 | 55~70 |
Equipment Advantage
- steel sheet pile, cement pile, steel rail pile, iron plate, H steel
|
- Faster converting operation; Applied to various working
environments.
|
- Compared to other systems, less force required for pile pulling
|
- Not damage the top or bottom of steel pipe pile, steel plate pile
and steel rail pile.
|
- Not damage the building even often work near it.
|
- Adopted Rubber sheath to reduce noise and vibration, the operation
is quiet and the working period is short; It is helpful to overcome
environmental problems.
|
- According to the placement direction of sheet pile and site
conditions, the sheet pile can be clamped or lowered by positive
and negative rotation of 180 °. The vibration frequency can be
adjusted by two levels, and the two-level double pumps are combined
to greatly increase the excitation force.
|
Area of Application

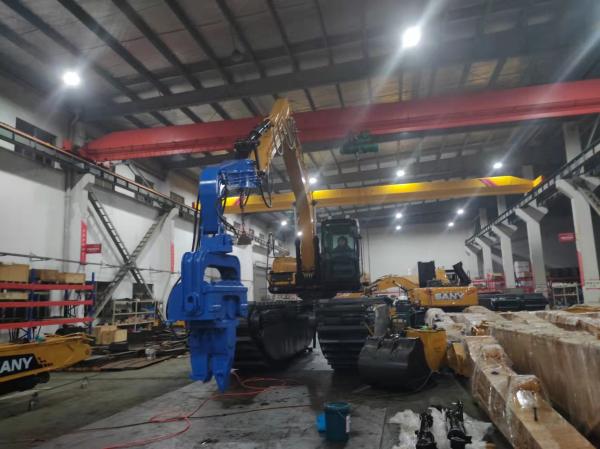

VIBRA hydraulic vibratory hammer is the vibratory driving piling
equipment which is popular among a wide variety of foundation
projects.Apart from driving and pulling elements such as sheet
piles and pipes, vibratory hammers are also used for soil
densifying or vertical drainage, especially suitable for municipal,
bridges, cofferdam, building foundation, etc.
With advanced technology, vibratory hammer has advantages of low
noise, high efficiency, non-pollution and non-damage to piles,etc.
FAQ
Q: How long is the warranty period ?
A: The warranty period is 12 months from the date of completion of
installation, the mainframe and key components, except for wearing
parts.
Q: What is the MOQ ?
A: 1 set is available.
Q: What's the payment method ?
A: We accept T/T and D/P payment.
Q: What is the delivery time ?
A: The delivery time is generally 7-35 days, and arrive at Shanghai
Port. Shipping time should be considered overseas.
Q: Can I have our LOGO on the machine ?
A: Of course you can.
Q: How is your product quality ?
A: Our equipment is strictly implemented in accordance with the
technical standards of "Technical Conditions for Pile Driver
Enterprises".
Q: Can I be your dealer ?
A: Welcome to become our dealer, and we are looking forward to
further developing into a regional general agent and strategic
partner like you with lofty ideals!
Q: How To Order?
A:
1. Please tell us the model with quantity and other requirement
which you needed.
2. We issue the Proforma Invoice to you after confirmed the price
and other details.
3. We arrange the order production upon receipt of confirmed PI and
your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the
shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
