Side Grip Vibratory Hammer Pile Driver Excavator Mounted Sheet Vibro Hammer

Ask Lasest Price
Brand Name :	VIBRA
Model Number :	SV-200
Certification :	ISO 9001:2015
Price :	Negotiation
Payment Terms :	T/T, D/P, Western Union, MoneyGram, L/C
Supply Ability :	10 set/month
Delivery Time :	15-35 days

Add to Cart

Product Details
Company Profile

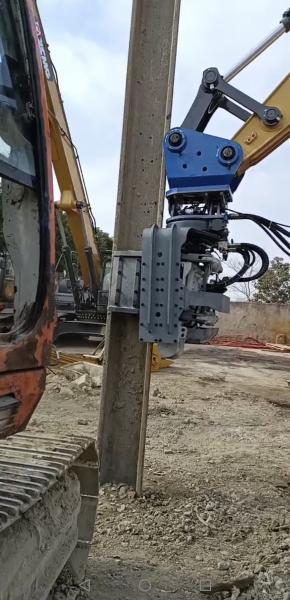

Side Grip Vibratory Hammer Pile Driver Excavator Mounted Sheet Vibro Hammer

Description

More secure and quicker than conventional Pile Drivers available, this model highlights a side and base clip to effectively pick up, tilt and turn piles for more precise outcomes.

VIBRA Side Grip Pile Driver is extraordinarily designed as excavator mounted vibro hammers. Side grip is handily adjusted to the excavator by association section created by VIBRA. They are hydraulically determined by the excavator and effortlessly worked by the excavator operator. With an ergonomic design and superior execution, different capacities excavator mounted VIBRA side grip pile drivers give long life, issue free piling application.

VIBRA side grip pile driver saves time and money with elite execution and pile driving/extracting power. Side Grip Vibratory Hammer, can deal with, pitch and drive the sheet and tube piles. It is able to achieve the entire pile driving cycle without the requirement for manual treatment of the piles or helping machinery.

Design Details
Rotary Oscillation Mechanism

High torque slewing support
High pressure swing cylinder
Split control valve Compact central swivel
Front oil circuit interface

Gantry Hanger

One-piece structure
High pressure accumulator
Split control valve
Front oil circuit interface

Holding Clip System

High strength arm
Dual high pressure cylinders
Interchangeable collet
Simultaneous clamping and release of both arms

Vibrating Body

Imported drive motor
High strength box
high speed gear
Symmetrical eccentric arrangement
Increase the oil drain

Bottom Clip System

One-piece cast steel
Integrated cylinder
tooth plate
Pile hook mechanism

Benefits OF VIBRA SIDE GRIP PILE DRIVER

Appropriate for wide scope of piles like sheet piles, casing piles, H, I-beams, steel and tube piles,
Appropriate for different ground conditions,
Ideal for conveying the driving energy to the pile,
Successful shifting and turning mechanism,
Has durability and simple maintenance,
Simple pile handling and pitching,
Wide opening and synchronized development,
Can perform 360º/+-30º rotation.

Fitted Rubber sheath to reduce noise, the operation is quiet and the working period is short; helpful to overcome environmental problems.

Driving and pulling different kind of steel sheet pile, cement pile, steel rail pile, iron plate, H steel etc.

Faster converting operation; Applicable for various working projects and environment.

In compare with other pile driving systems, less force required for pile pulling

Protect from damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.

Protect from damage the building even often work near it

Hydraulic motor has small volume and light weight, but it can output high power and high speed.

Vibration frequency can be adjusted by variable pump. It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.

FAQ

Q: How long is the warranty period ?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.

Q: What is the MOQ ?

A: 1 set is available .

Q: What's the payment method ?

A: We accept T/T and D/P payment.

Q: What is the delivery time ?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.

Q: Can I have our LOGO on the machine ?

A: Of course you can.

Q: How is your product quality ?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".

Q: Can I be your dealer ?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
