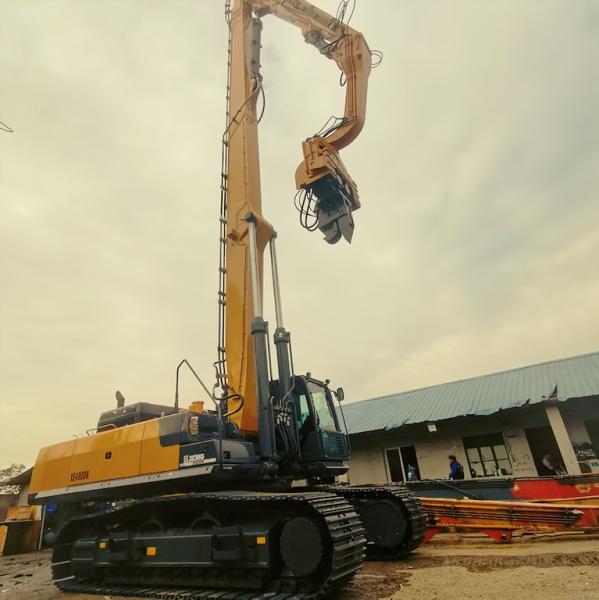

Excavator mounted Vibro hammer for fast pille driving construction
projects
A "vibratory hammer/vibro hammer" is a tool used to drive piles in or out of the ground for
building marinedocks, bridges, buildings, roads, rail, walls, and
many other types of foundations. Traditional pile drivers are very
loud and use a large weight to strike the pile. Vibratory hammers
however are very quiet and have many advantages. A few advantages
of VIBRA vibratory hammers are that they can drive piles much more quickly,
extract old piles out of the ground, can be used underwater, are
light weight, protect the environment (especially animal life), can
be used in close proximity to residential areas without noise
complaints, and are small and easy to ship.
Working Principle
Hydraulic vibrating pile driver take the advantage of high
frequency vibration generated by motor and transit the vibration
force to the hydraulic vibrating pile driver for the surrounding
soil liquefying & break its structure to reduce the friction;
then piling or drilling the pile form the soil ground via
excavator. The high frequency vibration is driven by the hydraulic
motor of the excavator.
The hydraulic motor drives the two eccentric axes to rotate at high
speed in opposite direction. The horizontal force of the eccentric
axis cancels each other without vibration. The vertical forces add
up to each other, creating a vertical-frequency vibration.
Machinery Characteristics
- The control system adopts integrated import control valve, each
action can be controlled independently, convenient for maintenance
and check.
- The vibration frequency is controlled at two stages, and the second
stage vibration is the confluence of double pumps, which greatly
increases the excitation force and overcomes the special geology.
- Mini and light weight design make application flexible.
- Taking the advantage of the excavator hydraulic system without
other driving system requirement, which save fuel oil and
transportation cost.
- The operation is simple and easy to learn. The driver who has the
operation foundation of excavator can operate it with practice
Technical Parameter
| Item | FV-250 | FV-280 | FV-300 | FV-330 | FV-350L | FV-350 | FV-400 |
| Vibration Frequency (rpm) | 2500 | 2800 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Operation Pressure (Mpa) | 30 | 32 | 32 | 32 | 32 | 32 | 32 |
| Centrifugal Force (KN) | 265 | 335 | 350 | 372 | 435 | 455 | 485 |
| Max.Pile Length (m) | 10 | 12 | 12 | 12 | 15 | 15 | 18 |
| Arm Weight (kg) | 500 | 500 | 670 | 670 | 670 | 750 | 750 |
| Hammer Weight (kg) | 1700 | 1900 | 2100 | 2300 | 2400 | 2600 | 2700 |
| Excavator (T) | 20-30 | 20-30 | 30-35 | 33-40 | 35-40 | 40-45 | 45-60 |
